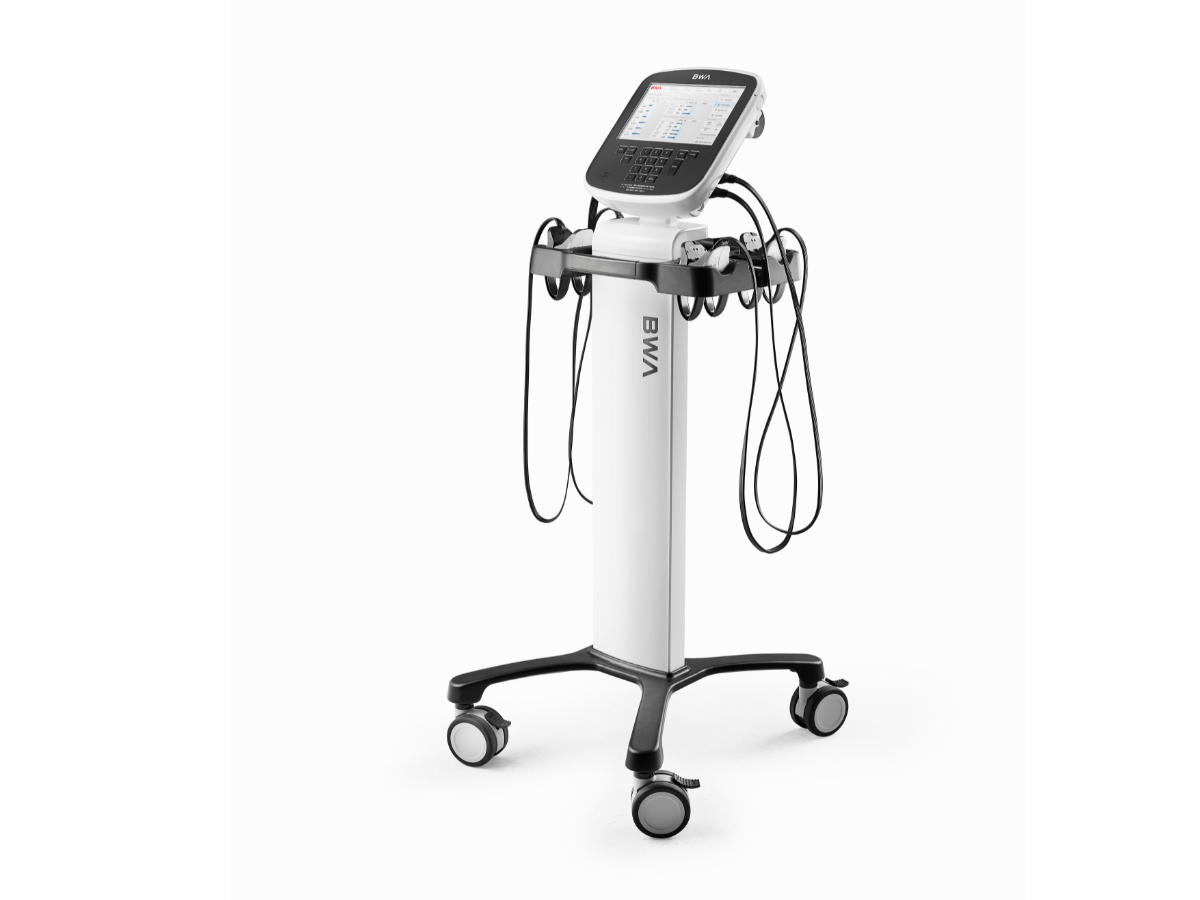

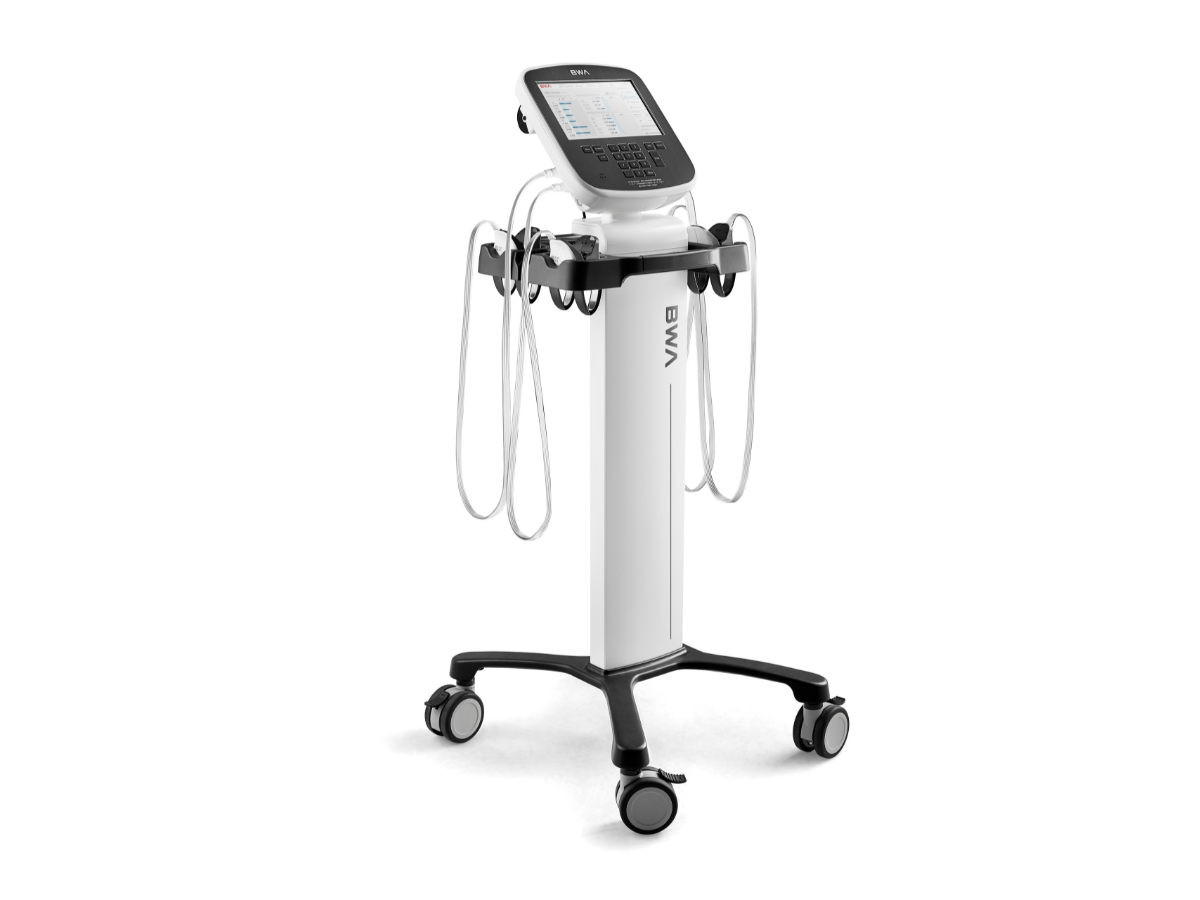

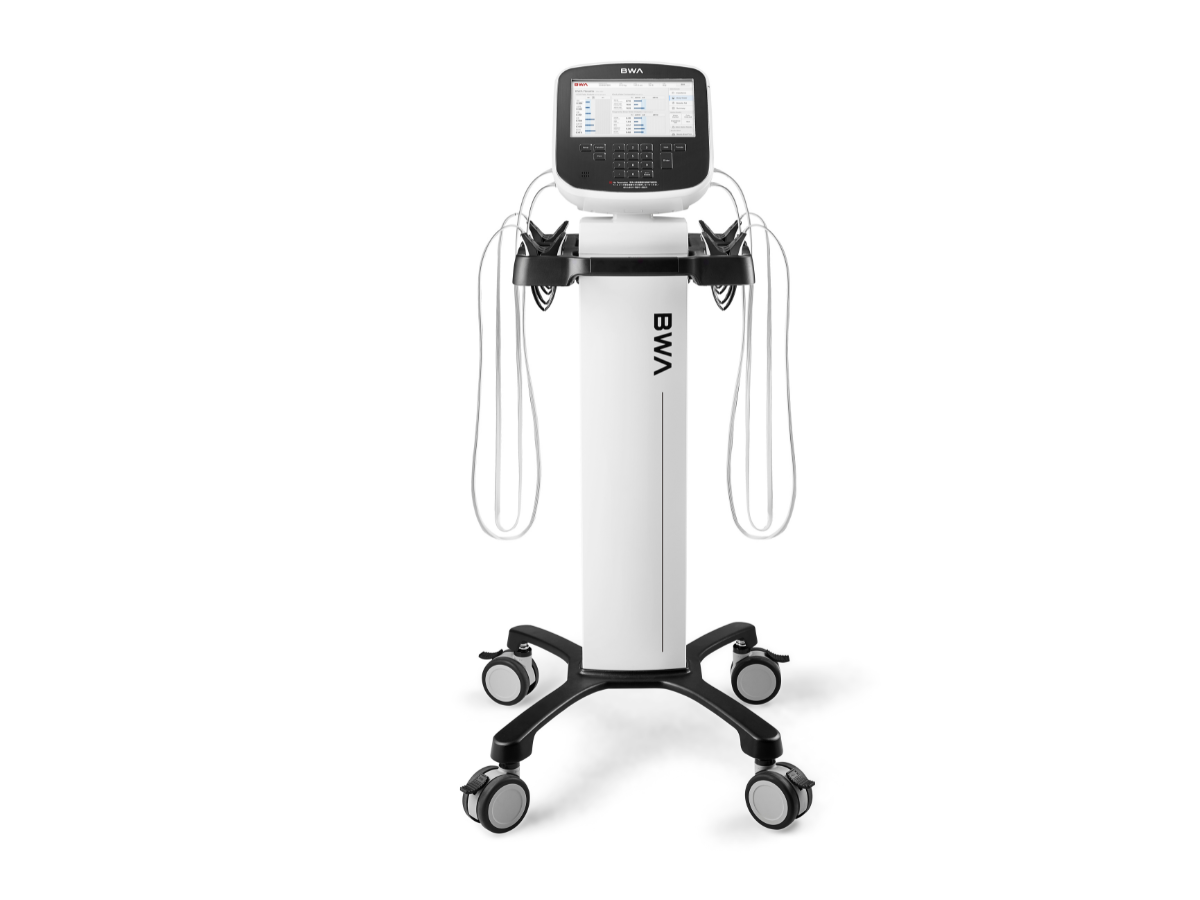

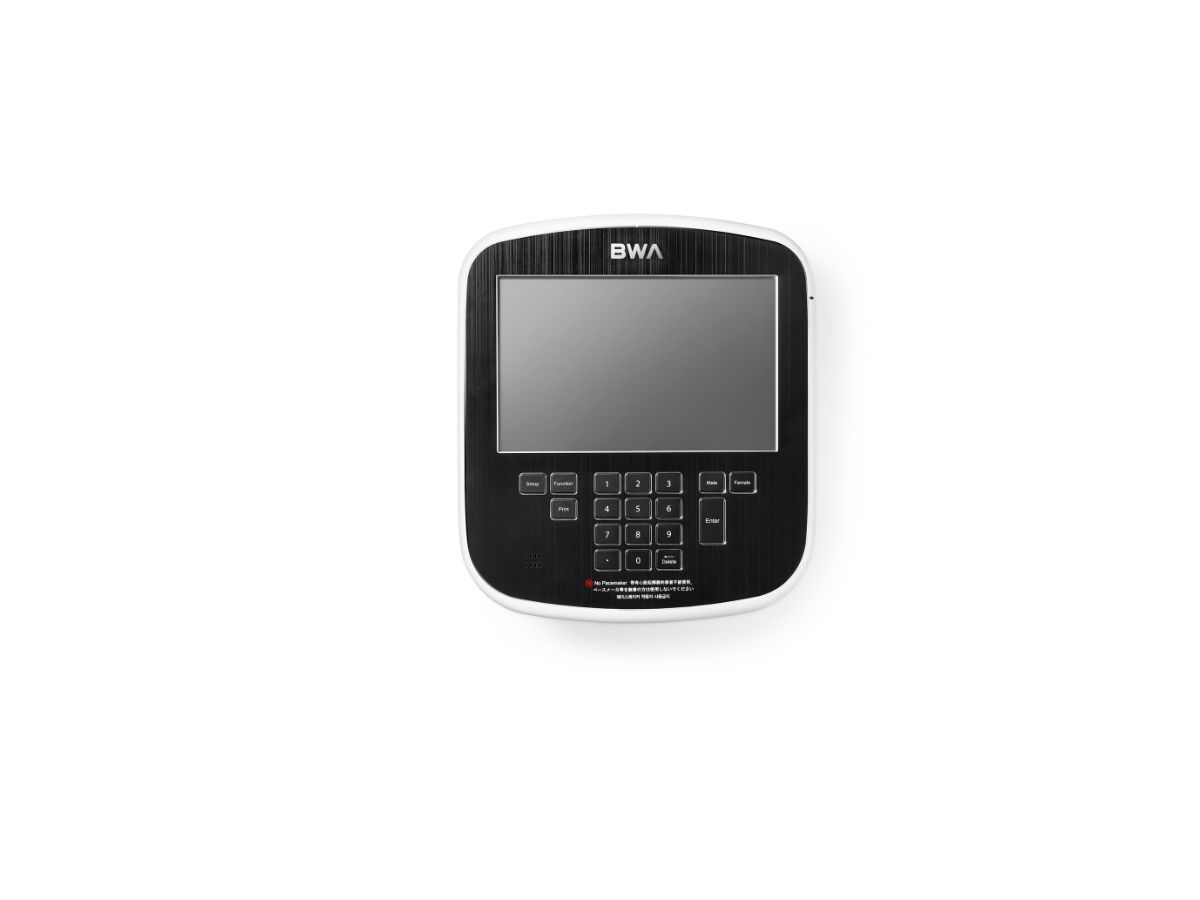

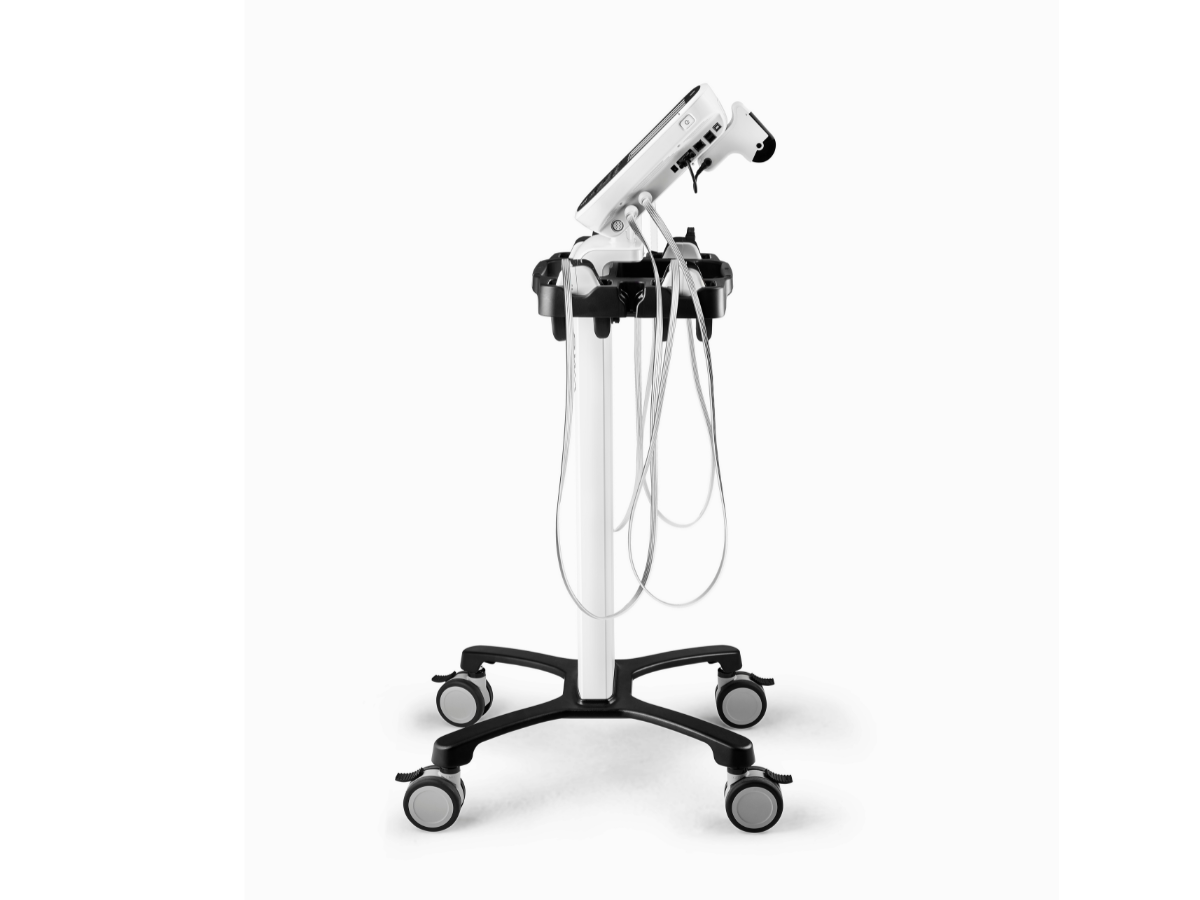

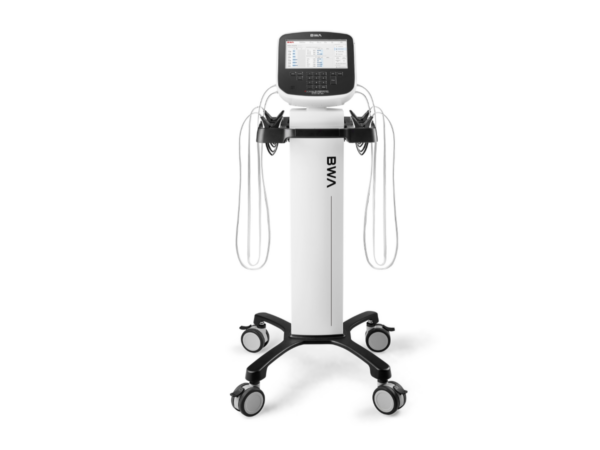

InBody BWA 2.0
A new standard for body water analysis
InBody sets a new standard for body water analysis, the BWA 2.0. Equipped with state-of-the-art 3MHz technology, the BWA 2.0 provides extensive parameters for professionals to better suit diverse patients with different conditions and medical specialties than ever before.
- Cole-Cole Plot Graph for Monitoring Changes in Body Water and Cellular Integrity. With the Cole-Cole plot graph, BWA provides accurate Segmental Body Phase Angle measurements at 5, 50, and 250kHz enhancing sensitivity to the changes in fluid and cellular integrity resulting from various diseases and conditions.
- Statistical Analysis by Age, Based on InBody Big Data. Based on 13 million sets of InBody Big Data, InBody provides averages and standard deviation graphs for each result parameter according to age. It allows for comparative evaluation between different or same age groups for a more objective body composition analysis.
- Direct Segmental Measurement-BIA. Each of our body segments is different in length and cross-sectional area. Arms and legs are longer and narrower in comparison to the trunk, so their impedance values are higher than the trunk. On the other hand, the trunk is shorter and wider than the arms and legs, so its impedance value is lower. However, the trunk muscle mass accounts for almost half of the whole body muscle mass, which is why a small impedance change in the trunk has a greater impact on the amount of whole body muscle mass. Therefore, the trunk must be measured separately in order to measure the whole body muscle mass accurately.
- Clamp Electrode for High Reproducibility. The Clamp Electrode is a combination of two forcep electrodes, which acts as an indicator attached to the wrist and ankle for high reproducibility. The flexible design of the forcep ensures the electrodes closely adhere to wrist and ankle even during the articular movements.
- Covering a Wide Range of Subjects / Patients and Conditions. More precise results can be obtained and utilized by entering the patient status information such as amputation, paralysis, lymphedema, and vascular access region.
- Extensive Research Parameters for Professionals. Select from a range of distinct optional parameters for clinical and research purposes.
- Water Control Calculator: to set target ECW Ratio
- Age-specific graph: to evaluate and compare the body composition result by age
- BIVA (Bioelectrical Impedance Vector Analysis): to evaluate the hydration and nutritional status in comparison to their demographic group
7 Result Sheets for In-depth Analysis
- Body Composition Results Sheet
- Body Water Results Sheet
- Body Composition Results Sheet for Children
- Research Results Sheet
- Comparison Results Sheet
- Evaluation Results Sheet
- Thermal Results Sheet
Talk to us today about the BWA2.0 for Lymphology or Rehabilitation.
