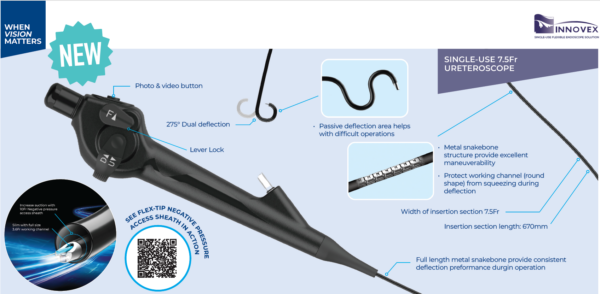

Innovex Single-Use 7.5 Fr Flexible Ureteroscope
INNOVEX Single-Use Flexible Endoscope Solution provides superior clarity, covering the endoscopy needs of several departments, while eliminating the cost and risk associated with reprocessing and cross-contamination.
The new INNOVEX single-use flexible Ureteroscope was designed and optimised to provide the same high performance, look and feel you expect from a reusable scope in a ground-breaking single-use platform.
We have a comprehensive range of sterile devices for each patient, raising the standard of patient care by reducing infection risk due to ineffective reprocessing and cross-contamination.
Innovex Single Use 7.5 Fr Ureteroscope Advantage
- Superior image: CMOS 400 x 400 pixels= 160,000 pixels resolution
- Bright illumination: 2 LEDs
- Advanced image algorithm
- Field of view: 120°±10%
- Depth of view: 3-100mm

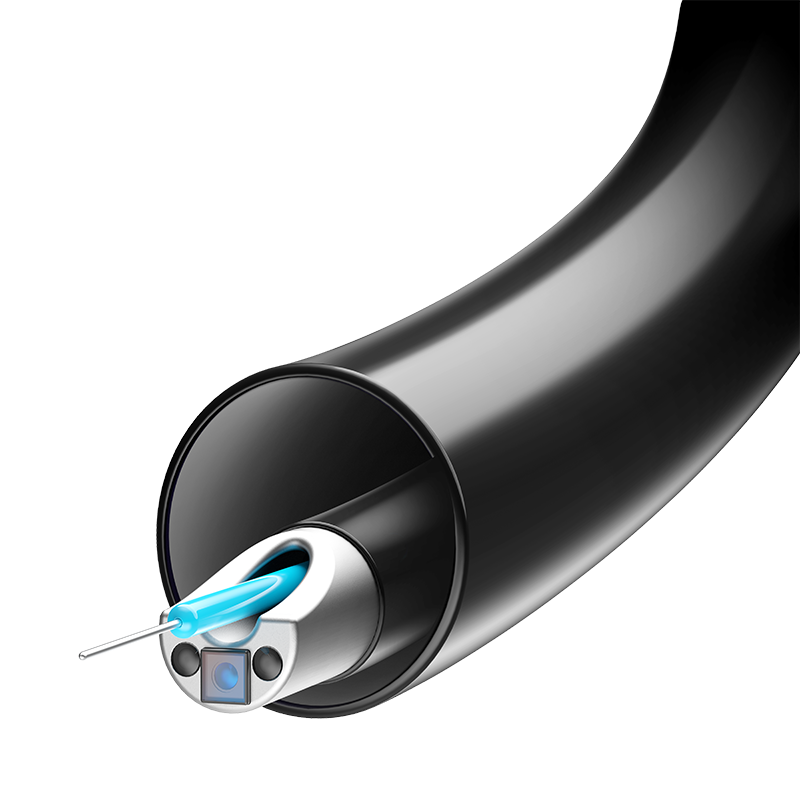

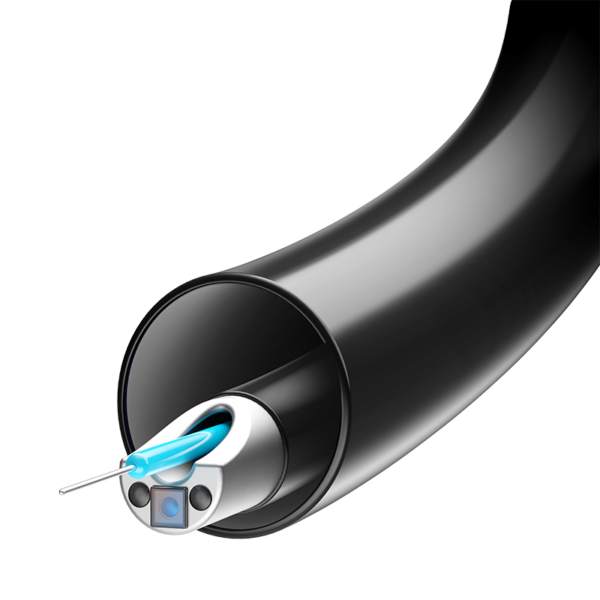

- Tapered distal tip for easier insertion
More 7.5 Fr Ureteroscope Features

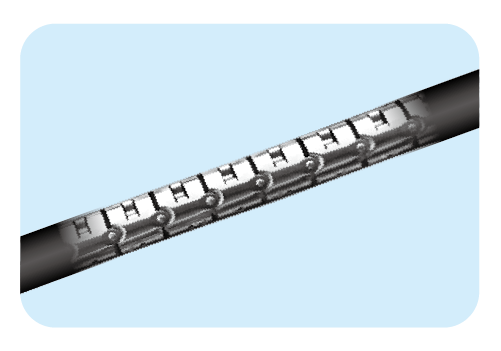

- Metal snake bone structure – better manoeuvrability and pushability
- Working length 670 mm
- Distal end outer diameter 2.5 mm / 7.5 Fr
- Insertion section diameter 2.9 mm / 8.7 Fr
- Super smooth kink resistant working channel diameter 1.2 mm / 3.6 Fr

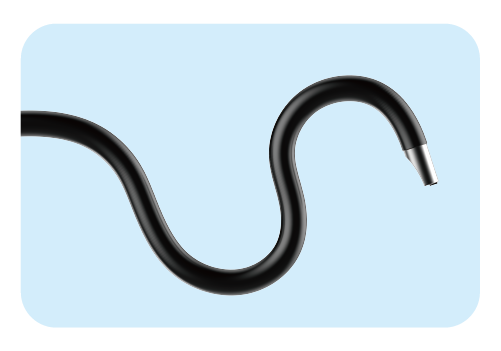

- Deflection: up 275°, down 275°
- Deflection lock – can stop at any deflection
- Quick access to photo and video button
Single Use 7.5 Fr Ureteroscope Benefits
- Light weight ureteroscope with deflection lock to reduce fatigue
- Always available when there is a high risk of damaging a reusable ureteroscope
- Always available whenever demand for reusable ureteroscopes is exceeded
- Clear, sharp images for all ureteroscopic procedures
- Improved fluid flow through a 10 Fr Access Sheath
- Always clean and sterile reducing potential contamination risk from reprocessing
Digital Video Processor II ESO-H-01
One DVP for all Solutions
Digital Processing Unit Product Features
- Small footprint works with existing endoscopy towers
- High-capacity processor: advanced image algorithm to improve image quality
- USB connection for external big capacity storage device
- Internal battery for time clock
- USB connection for external keyboard to simplify input operation
- Signal output: 2 DVI + 1 SDI + 1 VGA
- Accurate time counting
- Memorise last time settings before new settings
